EDG Configuration Parameters

Git Integration - Not available on SaaS

Parameter	Description
Git Folder	A local folder on the server that connects to a git repository. This must be the folder with a `.git` sub-folder or a sub-folder of such a folder. If a value is given then the user interface will have additional features to commit, push, pull, and import asset collections using that repository.
Git user name	The user name to authenticate to the git repository (e.g. for push requests). Typically combined with a password. Note that for GitHub access, the password may need to be a personal access token. See https://github.com/settings/tokens.
Git password	This field is editable only if the other Git parameters are set.

GraphQL and Search

Parameter	Default	Description
Enable aggregation fields	false	True to activate `_COUNT` and `_CONCAT` aggregation fields for the TopBraid GraphQL services.
Enable derive fields	false	True to activate deriveXY fields for the TopBraid GraphQL services.
Match all languages	false	If set to true then GraphQL searches including `queryText` and `contains` will match any language tag. By default (or false) only the matches for the HTTP client’s languages will be used for matching.
Timeout on GraphQL queries	off	If not set or 0 then the GraphQL endpoint will have no timeout. Timeout is given in milliseconds and will stop query execution after the specified time has passed. Note that GraphQL is heavily used by the EDG editor itself, so setting a timeout may block certain long-running operations from finishing.

JIRA Integration

Parameter	Default	Description
JIRA Server URL		URL to access JIRA, e.g., https://mycompany.atlassian.net/ NOTE: This URL must end with a slash (“/”).
JIRA Issue Statuses	OPEN	The Status value(s) of issues that will be searched over on JIRA. Multiple values will be interpreted as “OR” and need to be separated by commas. For example: “OPEN,TODO” would produce (status=”OPEN” OR status=”TODO”) in the search string. Leave empty for no match status condition.
JIRA User Name		The JIRA login name to be shared by all EDG users.
JIRA Password		This field is editable only if the other JIRA parameters are set. API Tokens are used as passwords for Jira integration.

Lucene

Parameter	Description
Lucene Unlimited Matches	If true then queries using the Lucene text index will not use an upper boundary (10000) of matches. Activating this will return more complete results but may lead to bad worst-case performance. This setting applies to EDG editors and not Search the EDG
Use Lucene WhitespaceAnalyzer	Changes the Lucene index analyzer (currently used for the Text Indices/GraphQL-based and Seach the EDG queries only). The default StandardAnalyzer drops characters, such as slash (“/”) and hyphen (”–“), while the WhitespaceAnalyzer preserves them. Note: Requires a server restart and re-indexing to take effect.
Search the EDG Globally Enabled	If true, all asset collections are included in Search the EDG. Note: Requires a server restart to take effect.

Microsoft 365 Authentication

Note

Changes to these settings require a server restart to take effect.

Parameter	Description
Registered Application ID	The application id generated when the EDG application was registered in Azure.
Service account user name	The user name for the service account used to authenticate Microsoft 365 service requests (e.g. Microsoft Graph API).
Service account password	This field is editable only if the other Microsoft 365 parameters are set.

Reification

Parameter	Description
Preserve reification statements	If true then EDG file importers will not attempt to convert `rdf:Statement` instances into corresponding reification URIs (and vice versa on export). By default this conversion applies to blank nodes only, unless Also convert URI statements is true. Among the RDF file exporters, only the Sorted Turtle writer will observe this flag – all others do not convert reification URIs back to `rdf:Statement` instances.
Also convert URI statements	If true then EDG file importers will not only convert `rdf:Statement` instances that are blank nodes but also URI statements.
Record statement URIs	If true then EDG file importers will record the original URIs of `rdf:Statement` instances as values of `dash:uri` for round-tripping later.

Teamwork

Parameter	Default	Description
Comments activated	true	Allows comments on data resources
Tasks activated	true	Allows user tasks on data resources
Metrics dashboards activated	false	[EDG only.] This enables user viewing and administrator editing of metrics dashboards.
Disable Profile Avatars	false	Set this to true to remove the ability for users to add a profile image in the User Directory page.
Default namespace suggestion	http://example.org/{type}/new#	This is the string used to pre-fill the Default namespace field for a new vocabulary/asset. The EDG default is http://example.org/{type}/new#, which an administrator can customize here. Note that the variable {type} produces the lowercase plural name of the vocabulary/asset type, e.g., “ontologies”.
Constraint violations block editing	false	If true then the edit forms will block saving of edits if violations have at least `sh:Violation` severity. By default, users can override all violations, irrespective of their severity level, and continue despite them.
Only admins can upload files from TriG files	true	If true then only administrators can upload TriG files containing graphs that are mapped to files.

URI Construction Rules

When a new asset is created, these parameters determine how its URI is automatically constructed.

Parameter	Default	Description
Local name construct method	label	Usually, the new URI begins with the collection’s default namespace string (see the collection’s Settings utility group), and this parameter determines its suffix. The parameters settings are shared in the table Parameters Settings, below.
Include class prefix	true	When true, prefix the asset’s classname to the preceding local-name suffix parameter (except for: custom)
URI Prefix Separator	-	The character(s) used to separate the prefix value from the rest of the URI value when prefix is set.
Users cannot modify URI	false	When true, the URIs of new assets are automatically constructed and displayed, but collection editors cannot modify them.
URI Counter Offset	0	The default beginning count used in the case of counter being set to construct URIs.

Parameters Settings
Parameter value	URI structure
label or [EMPTY]	The asset’s label is appended to the default namespace.
uuid	A generated UUID is appended to the default namespace.
counter	A sequential integer is appended to the default namespace (from a namespace-specific sequence beginning with the above-specified URI Couter Offset)
custom	[EMPTY] – The default namespace is not used: the editor must provide the full URI manually

EDG Asset Collection Singletons

EDG Asset Collection Singletons are special asset collections that are automatically created when EDG is installed. Currently, there are two singletons: Governance Model and EDG Enumerations. Unlike other collection types, only one Governance Model and one EDG Enumerations collection can exist in a given installation of EDG. Assets in these collections are available for referencing in all other collections without a need to explicitly include them.

Setup EDG Enumerations – Administrators can use this function to populate selection values for built-in EDG properties such as status and confidentiality. Administrators will be able to load files with pre-built values and/or enter custom values.

Configure Asset Collection Types

For the asset collection types supported by the installed TopBraid product license, these settings allow administrators to show or hide those types in the user interface. Administrators can also modify “default includes” for each asset collection type. Default includes are graphs that are automatically included when a new collection is created.

User Interface Configuration

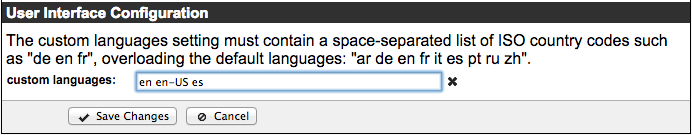

Some TopBraid EDG features support assigning language tags to string attribute values using a drop-down list when editing, for example:

This section allows overriding and adding additional languages. The below entery is a space-delimited list where you can enter the language choices that will appear on EDG editing screens. Any codes can be entered, but the codes will interoperate better with other systems, such as Web browsers, if the ISO 639 language codes and, optionally, ISO 3166 country codes, are used. In the following, ISO codes for English, US English, and Spanish have been entered. These will be the only languages that appear in the language tag drop-down:

**TopBraid EDG Custom Language Setting**

Default Notification Setup

These are the default notification settings that are used to initialize new collections. For each collection-related event, administrators can indicate default choices for the governance roles that should be notified of it. Each collection can override their initial default settings, and changes to these defaults do not affect existing collections.

Governance Roles

A user who is assigned a governance role will have permissions on a collection in that subject area. This global setting determines whether the role can create workflows.

Note

A user having one role disabled for workflow creation could still create a workflow if they also have another applicable enabled role (or a permission profile assignment).

There is also a setting for roles that edit source code and edit ADS scripts. If Can edit source code checked, users will see the source code panel in the editor and be able to make direct edits. If Can edit ADS scripts is checked, users will see the ADS panel and be able to write scripts that are executed on this EDG instance. If Can edit SPARQL queries is checked, enabled users will have edit access to the SPARQL query panel in the editor and be able to execute SPARQL queries on the collections. Typically, these permissions are enabled only for for expert users.

Landing Page Settings

The landing page widgets can be turned off or on for the entire EDG workspace. Users can turn off any widgets they do not want to see individually from their users page, unless a widget has been deactivated here, which will make it unavailable to anyone.

RDBMS Database Maintenance

If the underlying database has been modified outside of this TopBraid installation then some triples that may have been deleted may leave behind nodes that are no longer associated with any graph. These orphaned nodes can be removed with RDBMS Vacuum.

LineageGram Configuration Parameters

LineageGram is available as a plugin for customers who have purchased Lineage Models as part of their packaging. Please contact TopQuadrant support for this install.

Parameter	Description
LineageGram Reach	Sets the number of hops made for building a lineage or impact diagram. A value of between 1 and 10 is advised.
LineageGram Breadth	Sets the number of fan-in or fan-out paths that are evaluated for building a lineage or impact diagram, respectively. A value of between 2 and 10 is advised.
LineageGram with Viewframes	If true sets the lineageGram to a framed view with collapsible panes.
